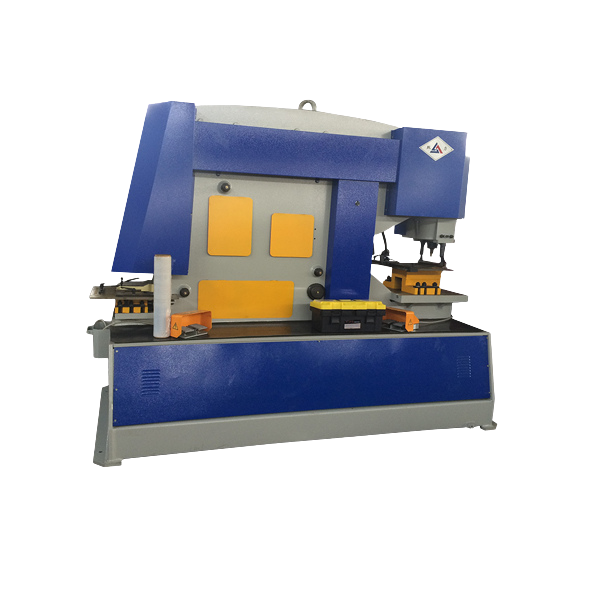

Multi-function in one machine
Combines punching, shearing, bending, notching, angle cutting and section bar processing in one unit. It realizes diversified metal processing while saving space and equipment cost.
High rigidity & stable performance
Heavy-duty welded steel frame with stress relief treatment ensures high rigidity, low vibration and long-term accuracy, suitable for heavy-duty and continuous working.
Powerful hydraulic system
Driven by hydraulic system, it provides strong punching and shearing force, smooth movement, low noise and easy operation, ideal for thick plates and profiles.
Wide processing application
Suitable for angle steel, channel steel, I-beam, round bar, square bar, flat bar and various metal sheets. Quick die replacement meets different production needs.
Easy operation & high efficiency
Multi-station design enables independent or simultaneous working. Simple adjustment, accurate positioning and easy operation greatly improve production efficiency.
Safe & user-friendly design
Equipped with safety guards, emergency stop and two-hand operation for high safety. Reasonable structure ensures low failure rate and easy maintenance.
Compact size & cost-effective
Small footprint and lower investment compared with separate punch, shear and bender, making it an ideal choice for steel structure workshops and metal processing factories.

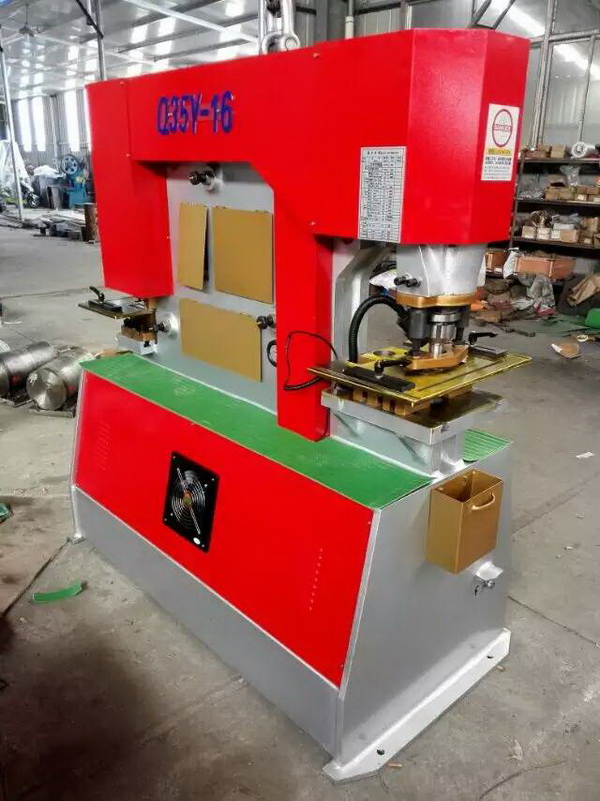

| Ironworker | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | QY35Y-50 |
| Pressure (KN) | 650 | 900 | 1200 | 1600 | 2000 | 2500 |
| Throat Depth (mm) | 300 | 355 | 400 | 600 | 600 | 600 |
| Electric Power (KW) | 4 | 5.5 | 7.5 | 11 | 15 | 18 |
| NET Weight (Kgs) | 1600 | 2300 | 3800 | 6300 | 8800 | 12800 |
| Punch capacity (Dia x thickness) (mm) |
25 x 16 | 30 x 20 | 35 x 25 | 38 x 30 | 40×35 | 40X40 |
| 50 x 8 | 50 x 12 | 50 x 18 | 50 x 24 | 50×28 | 50X32 | |
| Flat Bar Shearing (Width x Thickness) (mm) |
250×16 Max thickness |
330×20 Max thickness |
330×25 Max thickness |
330×30 Max thickness |
400×35 | 400X40 |
| 400×8 Max width |
480×10 Max width |
600×16 Max width |
600×20 Max width |
700×25 | 750X30 | |
| Angle steel shear (90°) | 125 x 125 x 12 | 140 x 140 x 12 | 160 x 160 x 14 | 180 x 180 x 16 | 200x200x18 | 200X200X20 |
| Angle steel shear (45°) (mm) |
50 x 50 x 5 | 50 x 50 x 5 | 60 x 60 x 6 | 60 x 60 x 6 | 100x100x10 | 120X120X10 |
| Round/square bar shear (mm) | 45/40 | 50/50 | 60/50 | 65/55 | 70/60 | 80/65 |
| Channel steel (mm) | 120 x 53 x 5.5 | 160 x 60 x 6.5 | 200 x 75 x 9 | 280 x 86 x 11.5 | 300x89x12 | 320X92X12 |
| I beam steel (mm) | 120 x 74 x 5 | 160 x 86 x 6 | 180 x 94 x 6.5 | 280 x 124 x 10.5 | 300x126x11 | 320X130X10 |
| Machine Dimension (L x W x H) (mm) |
1650x800x1800 | 1830x900x1830 | 2200x1100x2000 | 2600x1050x2300 | 2900x1300x2400 | 3000X1440X2450 |
