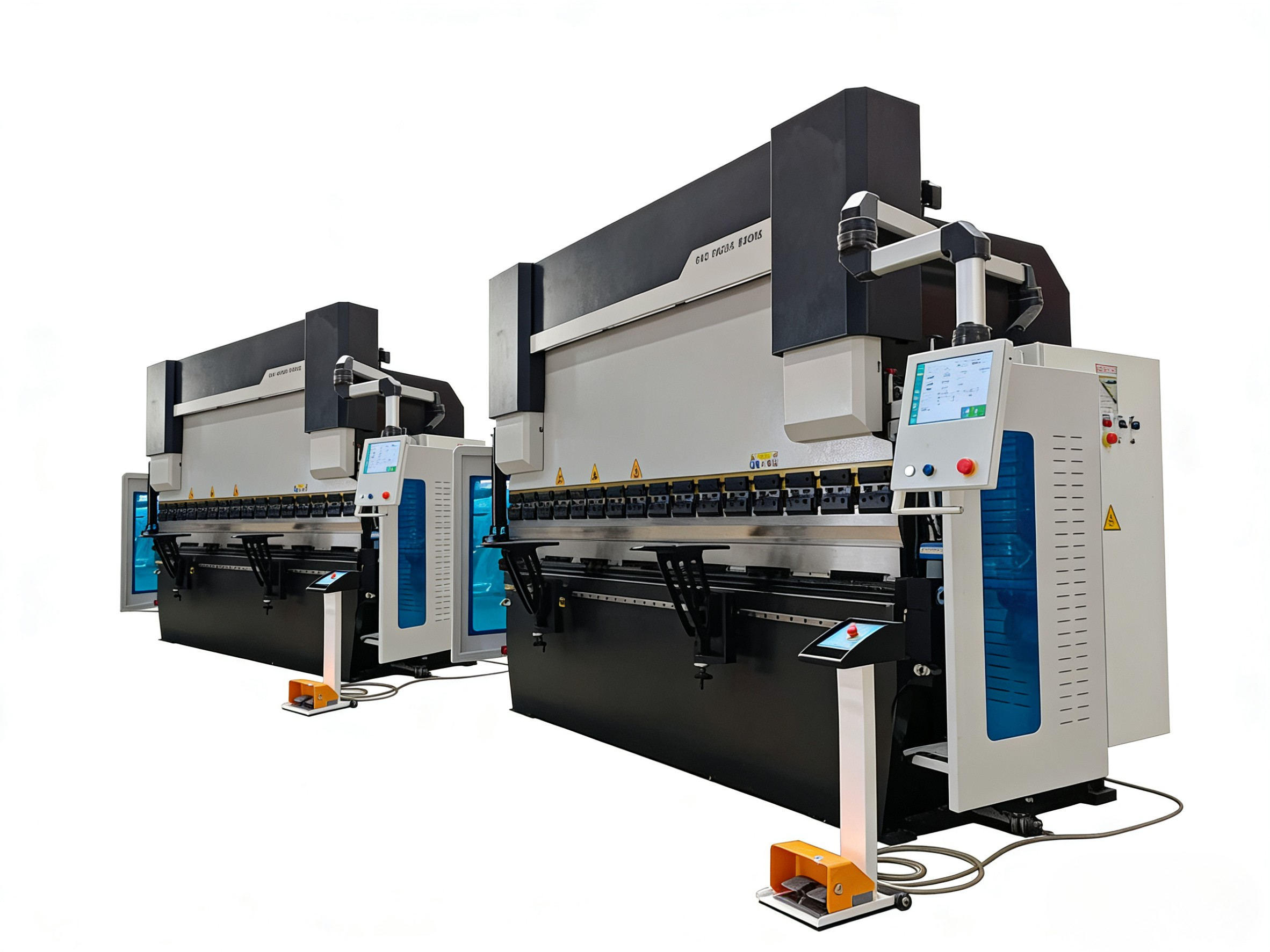

Our press brake is equipped with industry-leading Cybelec control system, ensuring intuitive operation and precise bending control. Combined with DSP photoelectric protection devices, it provides maximum operator safety while maintaining stable performance.

The machine integrates workbench compensation technology and 5-point monitoring valves, effectively eliminating springback and ensuring consistent bending accuracy across the entire workpiece length. Paired with a high-precision rear gauge and 4+1 axis configuration, it delivers exceptional versatility for complex metal forming tasks.

Key Configuration Highlights

1. Industry-Leading Control System

• Cybelec Control System: Features user-friendly interface, real-time parameter monitoring, and advanced bending calculation algorithms, supporting complex program storage and quick job switching.

• 4+1 Axis Configuration: Achieves multi-directional synchronization control, enabling precise bending of complex parts with minimal setup time.

2. Superior Safety & Stability

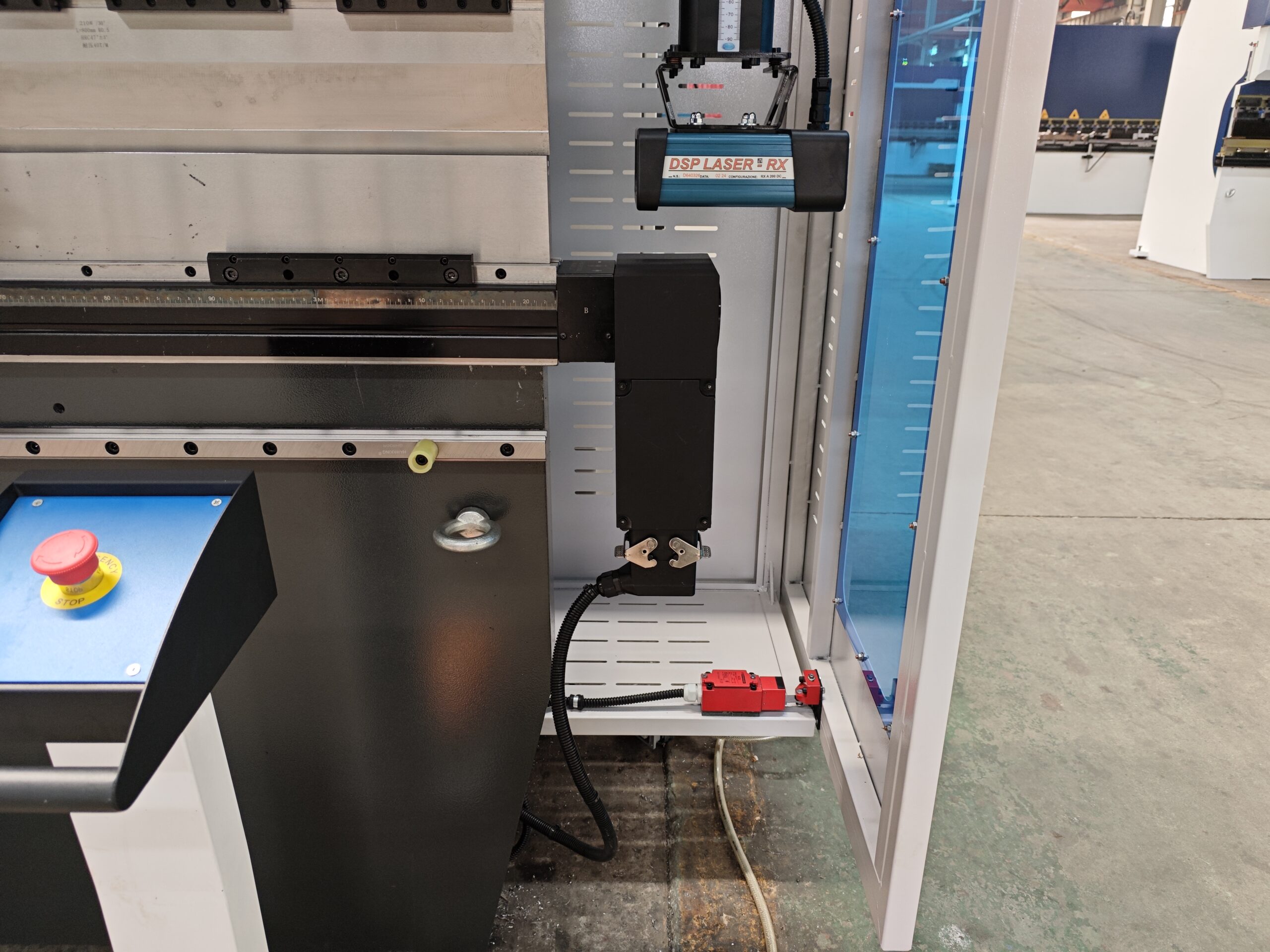

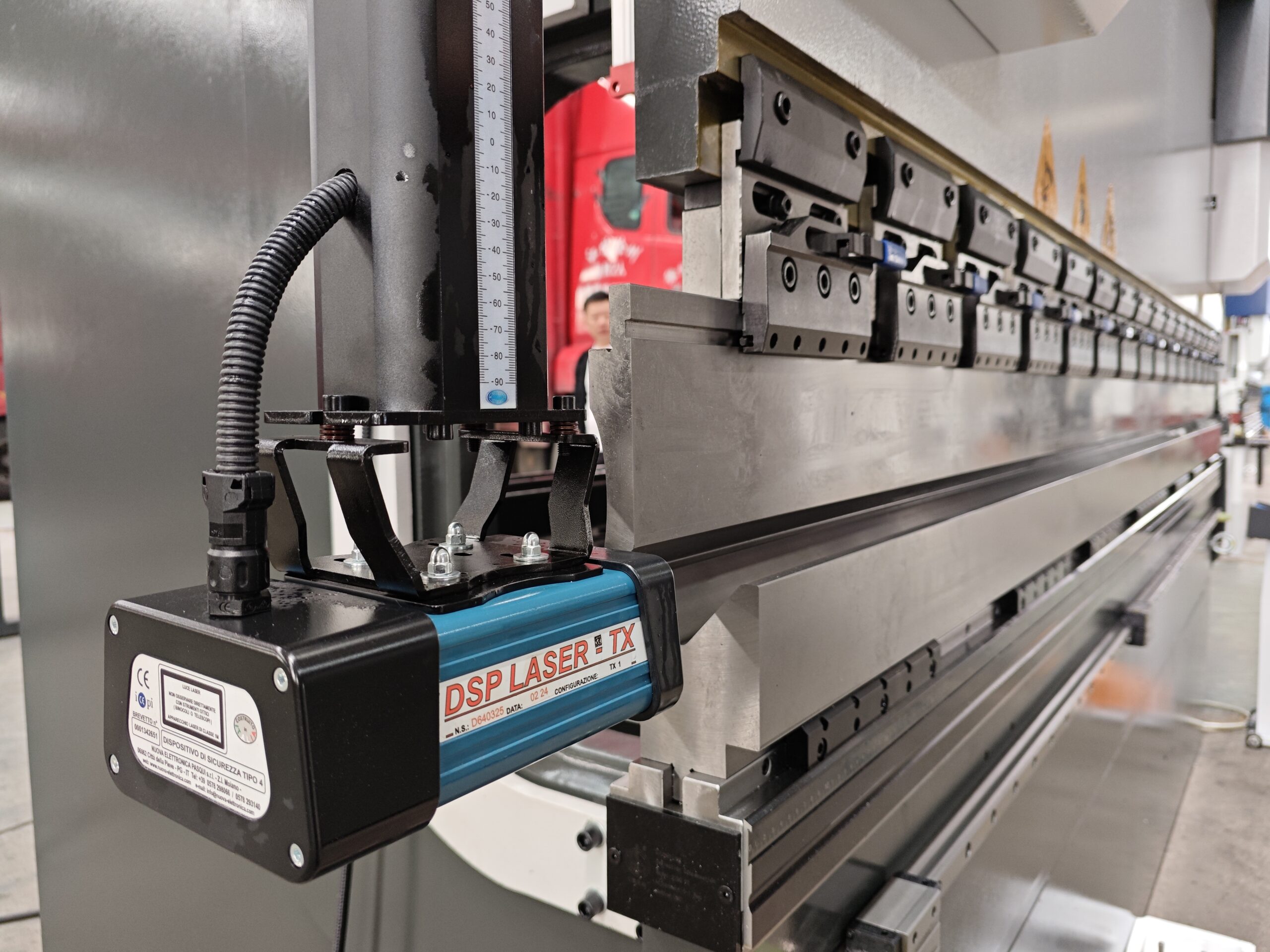

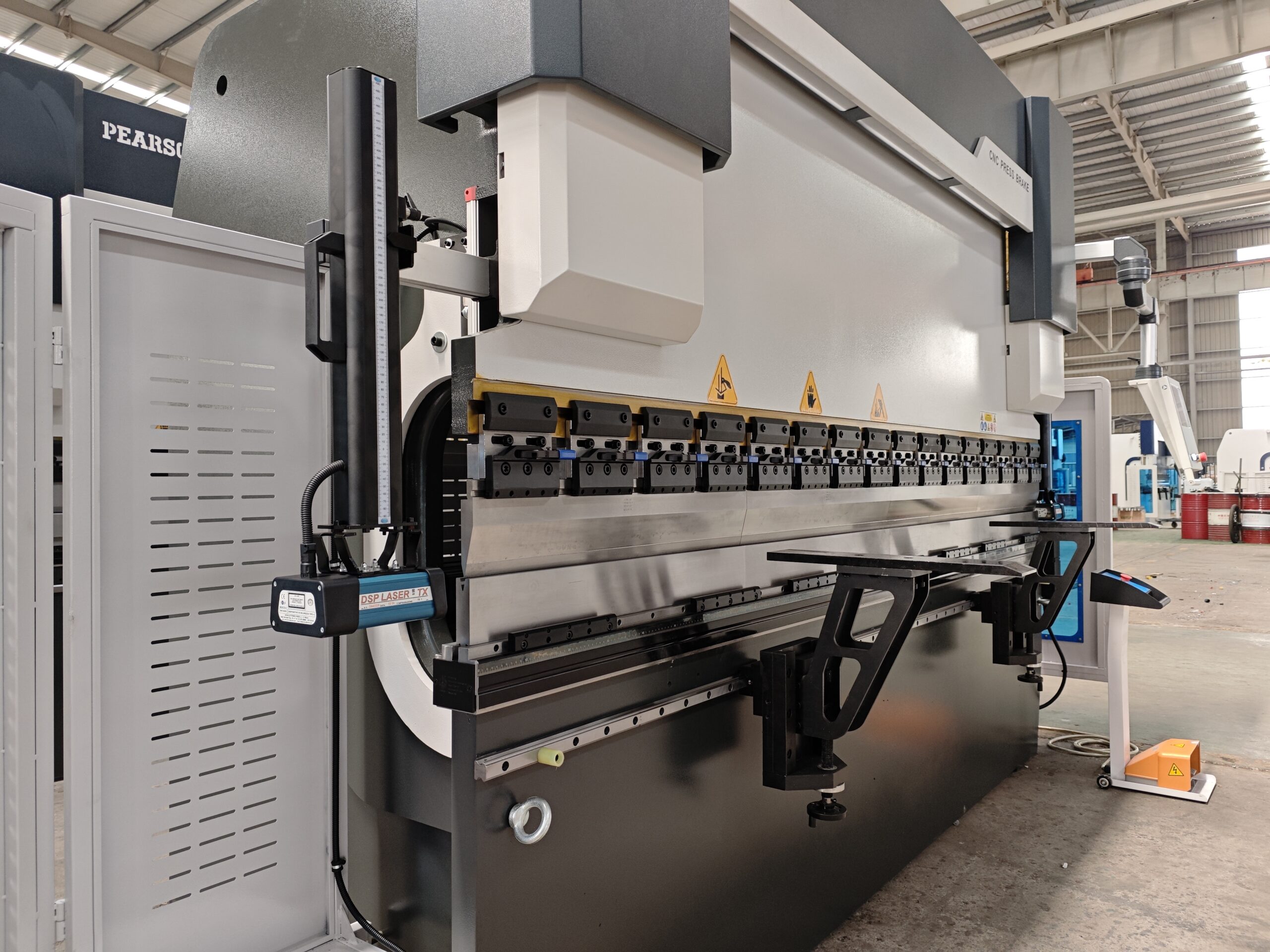

• DSP Photoelectric Protection: Complies with international safety standards, providing instant obstacle detection and emergency stop capabilities to prevent accidents.

• 5-Point Monitoring Valves: Ensures hydraulic system stability through real-time pressure detection, reducing downtime and enhancing operational safety.

3. Precision & Efficiency

• Workbench Compensation System: Automatically compensates for slider deflection during high-load bending, maintaining uniform accuracy across the entire bending length.

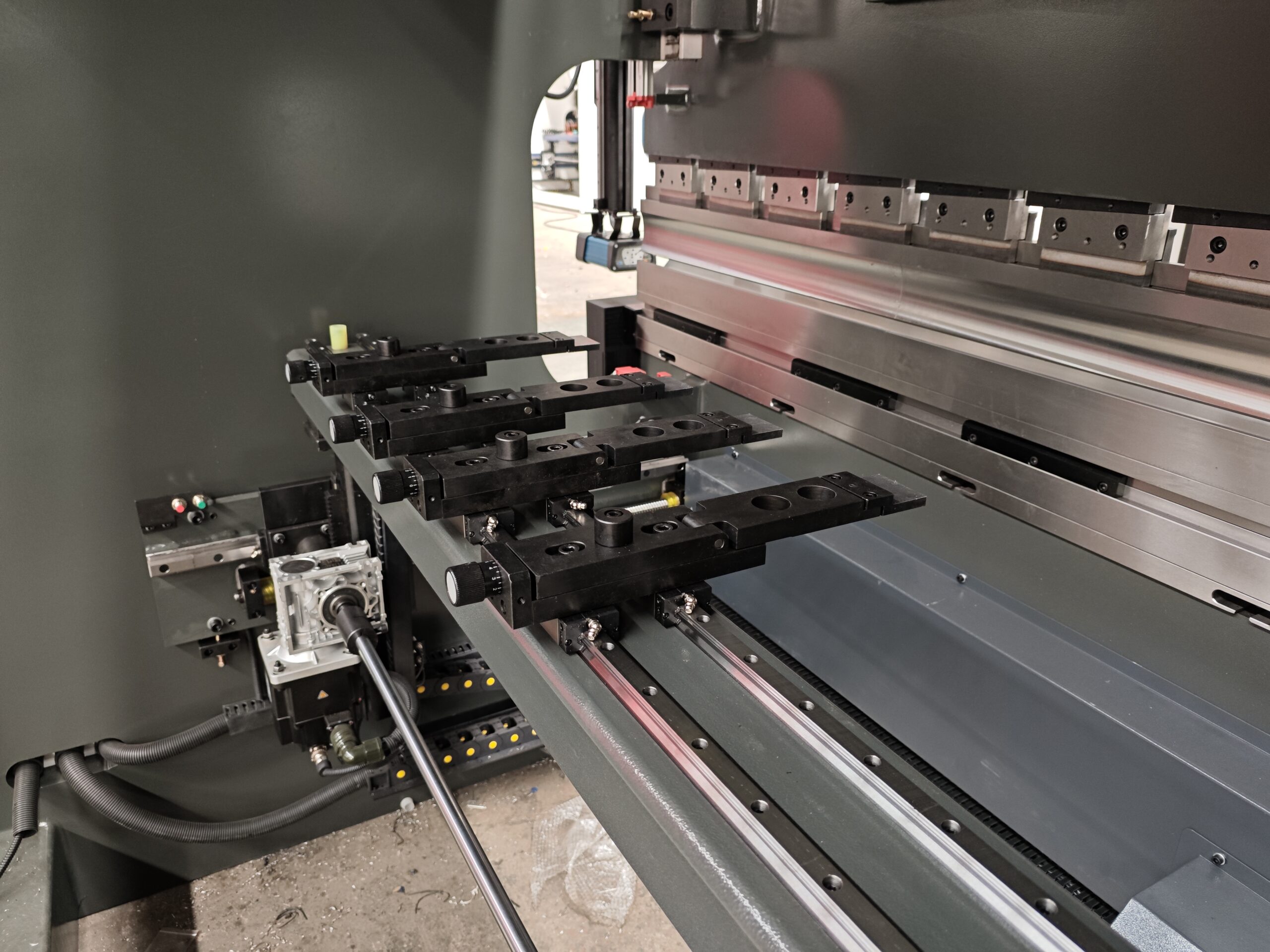

• High-Precision Rear Gauge: Adopts servo-driven positioning with micron-level accuracy, supporting repeated positioning for batch production of complex components.

4. Durable Construction

• Rigid welded frame with stress relief treatment for enhanced stability

• High-hardness slider guides for long-term precision retention

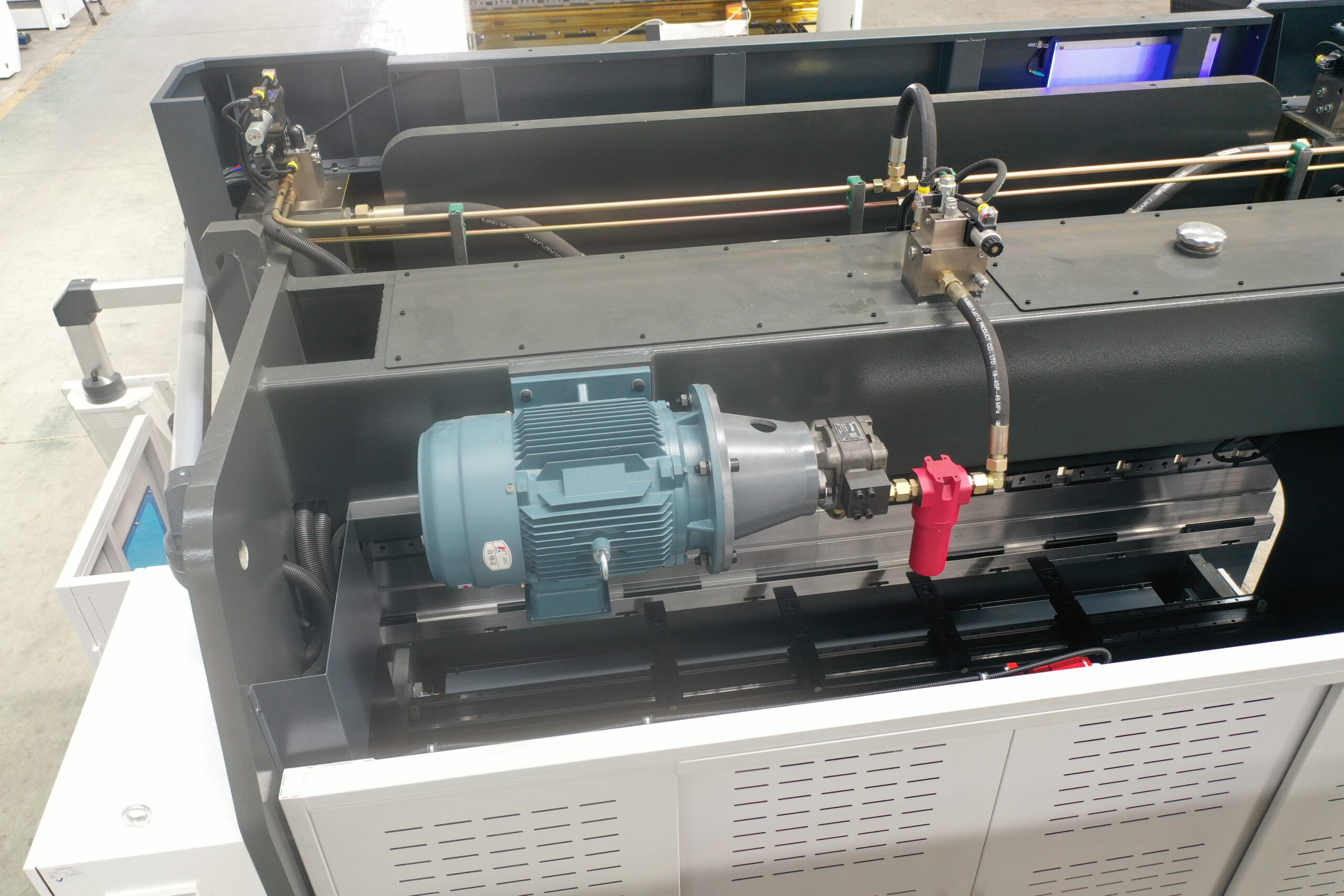

• Servo-driven hydraulic system for energy efficiency and fast response

Wide Application Range

Ideal for metal fabrication industries including automotive parts, electrical cabinets, steel structure, household appliances, and architectural metalwork. Suitable for bending various metal materials such as carbon steel, stainless steel, aluminum, and alloy plates.

Why Choose This Press Brake?

With its premium Cybelec control system, comprehensive safety features, and exceptional precision, this machine delivers superior performance for both small-batch custom production and high-volume manufacturing. It combines reliability, efficiency, and ease of use, making it the ideal choice for modern metalworking facilities.

Technical Specifications

Bending Force

Bending Length

Upright Distance

Throat Depth

Stroke

Opening Height

Main  Motor

Weight

Overall Dimensions

Kn

mm

mm

mm

mm

mm

Kw

Ton

L×W×H mm

WC67K/E-30t/1600

300

1600

1300

200

80

220

5.5

2.3

1650*1200*1700

WC67K/E-30t/2000

300

2000

1300

200

80

220

5.5

2.5

2000*1150*1700

WC67K/E-40t/2500

400

2500

2030

250

100

340

5.5

3.5

2500*1200*1900

WC67K/E-63t/2500

630

2500

2050

250

120

340

5.5

4.5

2500*1600*2200

WC67K/E-63t/3200

630

3200

2510

250

120

340

5.5

5

3200*1600*2200

WC67K/E-80t/2500

800

2500

2050

250

120

350

5.5

6

2500*1700*2200

WC67K/E-80t/3200

800

3200

2510

250

120

350

5.5

6.2

3200*1700*2200

WC67K/E-100t/2500

1000

2500

2050

320

120

380

7.5

6.5

2500*1500*2200

WC67K/E-100t/3200

1000

3200

2510

320

120

380

7.5

7

3200*1800*2500

WC67K/E-100t/4000

1000

4000

3100

320

120

380

7.5

8.5

4000*1800*2500

WC67K/E-125t/3200

1250

3200

2510

320

120

380

7.5

7.5

3200*1900*2600

WC67K/E-125t/4000

1250

4000

3100

320

120

380

7.5

9.5

4000*1435*2600

WC67K/E-160t/2500

1600

2500

2050

320

200

450

11

9

2500*1900*2700

WC67K/E-160t/3200

1600

3200

2510

320

200

450

11

11

3200*2000*2800

WC67K/E-160t/4000

1600

4000

3040

320

200

450

11

12

4000*2000*2800

WC67K/E-160t/5000

1600

5000

3800

320

200

450

11

14.5

5000*1900*3100

WC67K/E-160t/6000

1600

6000

4600

320

200

450

11

19.5

6000*1900*3300

WC67K/E-200T/3200

2000

3200

2600

320

250

540

15

13.5

3200*1820*3300

WC67K/E-200T/4000

2000

4000

3300

320

250

540

15

15

4000*2000*2850

WC67K/E-200T/5000

2000

5000

3800

320

250

540

15

19

5000*1950*3000

WC67K/E-200T/6000

2000

6000

4600

320

250

540

15

21

6000*1950*3300

WC67K/E-250T/3200

2500

3200

2600

400

250

580

18.5

17

3300*2000*3200

WC67K/E-250T/4000

2500

4000

3300

400

250

580

18.5

20

4000*2000*3400

WC67K/E-250T/5000

2500

5000

3800

400

250

580

18.5

23

5000*2000*3500

WC67K/E-250T/6000

2500

6000

4600

400

250

580

18.5

25.5

6000*2000*3600

WC67K/E-300T/3200

3000

3200

2600

400

250

580

18.5

21

3200*2100*3300

WC67K/E-300T/4000

3000

4000

3300

400

250

580

18.5

23

4000*2100*3500

WC67K/E-300T/5000

3000

5000

3800

400

250

580

18.5

25

5000*2100*3700

WC67K/E-300T/6000

3000

6000

4600

400

250

580

18.5

27.5

6000*2100*4000

WC67K/E-400T/4000

4000

4000

3300

400

250

580

22

26

4000*2200*3600

WC67K/E-400T/5000

4000

5000

3800

400

250

580

22

32

5000*2200*3900

WC67K/E-400T/6000

4000

6000

4400

400

250

580

22

35

6000*2200*4100

WC67K/E-500T/4000

5000

4000

3300

500

320

620

30

33

4000*2400*3900

WC67K/E-500T/5000

5000

5000

3800

500

320

620

30

37.5

5000*2400*3900

WC67K/E-500T/6000

5000

6000

4410

500

320

620

30

43.5

6000*2450*4250

WC67K/E-500T/7000

5000

7000

5400

500

320

620

30

55

7000*2550*4350

WC67K/E-600T/4000

6000

4000

3300

500

320

620

37

45

4000*2700*4700

WC67K/E-600T/5000

6000

5000

3800

500

320

620

37

48

5000*2700*4750

WC67K/E-600T/6000

6000

6000

4600

500

320

620

37

55

6000*2700*4950

WC67K/E-600T/7000

6000

7000

5400

500

320

620

37

62

7000*2700*5150
